BRNKL Blue
Vessel Monitoring
and Onboard Video
Recording Hub
BRNKL Blue brings vessel monitoring, multi-camera video recording, NMEA 2000 integration and remote access into one connected onboard platform. Built for commercial craft, professional operators and higher-value leisure vessels, it helps you monitor systems, review incidents and stay connected through Starlink, cellular or existing onboard internet.
For pilot boats, workboats, passenger fast craft, Sea Safari operators, yachts and superyachts.
One system. Six practical roles.
Monitor onboard systems
Connect NMEA 2000, digital switching, Modbus TCP, sensors and onboard networks to see what is happening across the vessel.
Record live video
Capture, view and replay multi-camera footage with 1 TB or 4 TB onboard storage for operational review, security and incident evidence. BRNKL Blue supports video streaming from up to 16 cameras.
Access the vessel remotely
Use Starlink, cellular or another onboard internet source to check vessel status, alarms, position and video from shore, without relying on a dedicated BRNKL data subscription.
Review trips and events
Replay vessel location, video and onboard systems together in one synchronised timeline, giving you a clearer picture of what happened before, during and after an event.
Receive tailored alerts
Set notifications around batteries, bilge activity, shore power, sensors, security triggers and other onboard conditions, so operators are warned when something needs attention.
Bring vessel data into one view

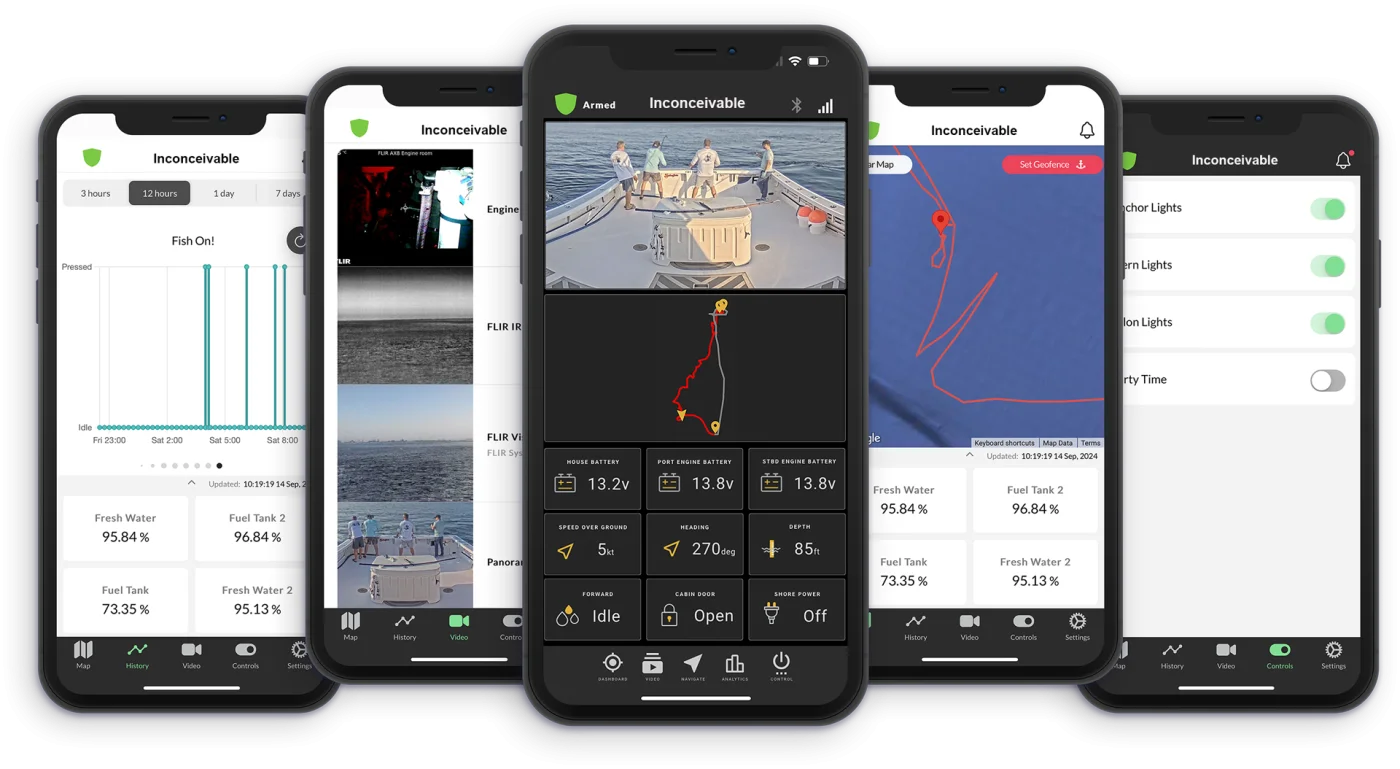

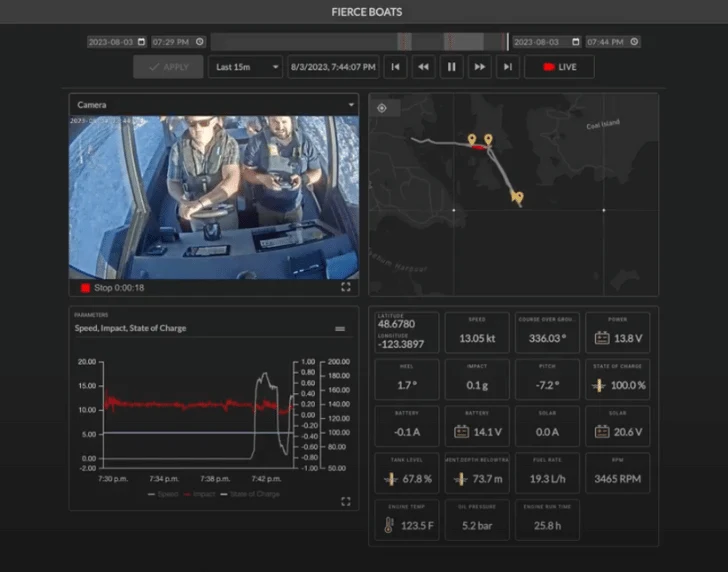

Use the mobile app or online dashboard to review video, GPS position, speed, engine data and onboard activity in one place, rather than checking several separate systems.
What BRNKL Blue brings together
Built for vessels where monitoring and evidence matter
Pilot boats
Monitor vessel systems, capture operating footage and retain a clearer record of demanding harbour and transfer operations.
Small commercial vessels
Link onboard status, cameras and alarms for better remote oversight and simpler incident review.
Workboats and support craft
Watch deck activity, cabins and machinery spaces while retaining recorded video and system history.
Passenger fast craft
Support post-incident review, complaint handling and day-to-day operational visibility across busy service vessels.
Sea Safari and tourism boats
Record trips, review passenger incidents, capture operational footage and support shoreside management.
Commercial fleets
Bring remote vessel visibility and recorded operational context into one connected platform.
Equally useful for owners who want a more connected boat
BRNKL Blue is not limited to commercial craft. For cruisers, motor yachts, sailing yachts and superyachts, it acts as a central monitoring and video hub. Owners and managers can check cameras, review alarms, monitor NMEA 2000 data and stay connected to the vessel when away from the marina.
- Remote check-ins from phone or web dashboard
- Monitor bilge, batteries, shore power and sensors
- Review onboard video and vessel location
- Use Starlink or other onboard internet
- Integrate with the existing NMEA 2000 network
- Retain local video storage for later review
BRNKL Blue key features

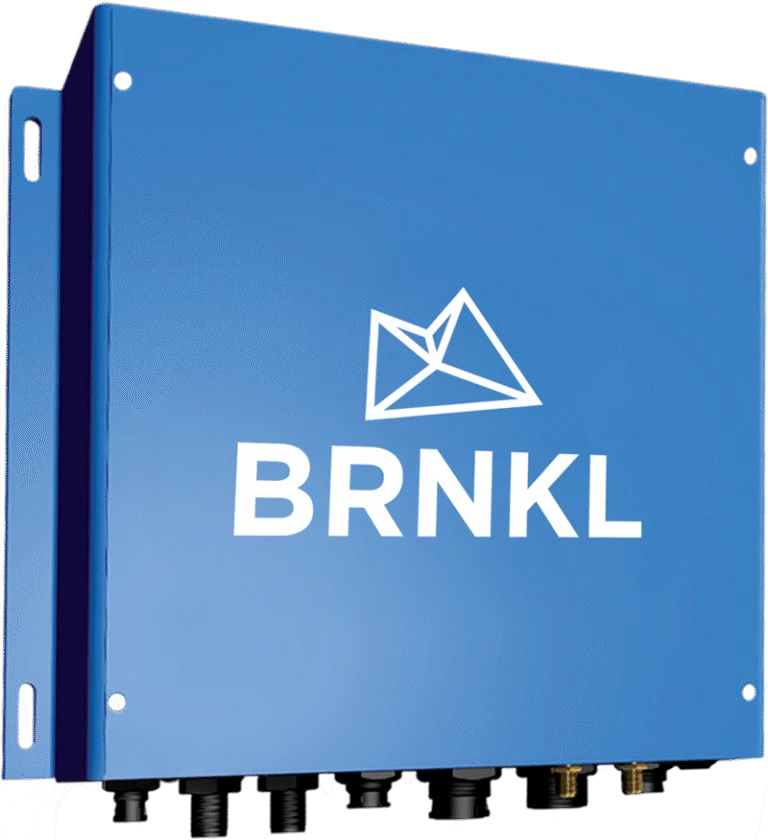

BRNKL Blue technical specification
Weight: 3.34 lb / 1.52 kg
Temperature range: -20°C to 75°C
Environment: Indoor unit, no IP rating
Mounting: Flange
Maximum consumption: 2 A at 12 V DC
Internal battery capacity: 3000 mAh
Power input: 10.5 V to 60 V DC
Two outputs: maximum 1.5 A
One Ethernet port
One NMEA 2000 port
One RS232 serial port
One Wi-Fi antenna port
One GNSS antenna port
Optional cloud connection
Accelerometer: ±16 g
Gyroscope: ±125 degrees per second
Supported protocols: RTSP
Application interface: ONVIF Profile S and ONVIF Profile T
Compatibility: Compatible with supported marine and IP camera systems
- BRNKL Blue unit
- Power cable
- Connector cable
- USB to Ethernet adapter
- GNSS antenna
- Wi-Fi antenna
- Security decal
- Documentation
BRNKL Blue, specified around your vessel
Mission Dynamics helps professional operators and owners configure BRNKL Blue around the vessel, the operating profile and the outcome required. That might mean incident review for a Sea Safari fleet, remote visibility for a workboat, onboard system monitoring for a cruiser or a connected video and data hub for a superyacht.
- Application-led product guidance
- Commercial and leisure installation planning
- Advice on cameras, sensors and data paths
- Integration with Starlink, onboard networks and NMEA 2000
- Clear specification before purchase
See how BRNKL Blue fits your vessel
Book a short discussion with Mission Dynamics to review your vessel type, monitoring priorities, camera needs and connectivity setup.
Book a demo →Built for vessels where monitoring and evidence matter
Commercial Marine
Fleet managers and charter fleet operators. Clearer incident evidence, better vessel oversight and stronger maintenance control across every boat.
Leisure & Tourism
Sea safari operators and adventure RIB fleets. Passenger safety with provable duty of care.
Rescue & SAR
Crew protection in emergency response. Mission documentation for training and operational analysis.
